SATE S700

Simple, smart and flexible; the most advanced rigid box making machine in the market

OVERVIEW

SATE's S700 is the most innovative and advanced machine for the production of rigid boxes actually in market.
Completely automatic format change.

The new generation has begun!

All the boxes

wide variety of formats: all of them!
rigid box

X (normal)

Photo By: John Doe
Button
2 heights rigid box
4 heights rigid box
trapezoidal rigid box

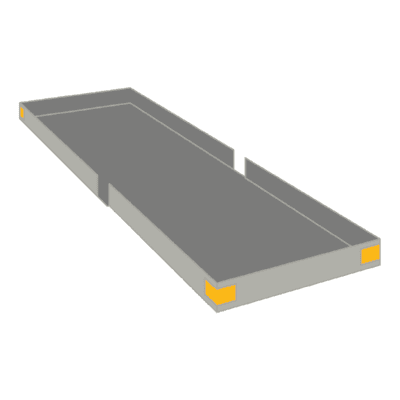

clamshell rigid box
T rigid box
H rigid box

Specifications

If you'd like to see all the specification please visit us in desktop mode
Paper sheets measures
Dimension
A
B
R
weight
pile height
min
70 mm   (2  3/4")
120 mm   (4  23/32")
5 mm   (0  13/64")
70 g/m²
-
max
1070 mm   (42  1/8")
1270 mm   (50")
100 mm   (3  15/16")
350 g/m²
800 mm   (31  1/2")
Cardboard sheets measures
Dimension
C
D
thickness
pile height
min
60 mm   (2 23/64")
60 mm   (2  23/64")
0,7 mm   (0  1/32")
-
max
1000 mm   (39  3/8")
1200 mm   (47  1/4")
6 mm   (0  15/64")
1500 mm   (59  1/16")
spotter accuracy
typ format change time
starting time
glue tank capacity
power absorption
air consumption
0,04 mm   (0,0016")
20 min with 1 operator
10 min
90 l   (23 U.S. gal - 19 U.K. gal)
12,5 kW (40kW installed)
175 l/min   (6,18 ft³/min)





length
width
height
net weight
8280 mm   (325  63/64")
5020 mm   (197  41/64")
4800 mm   (188  31/32")
10500 kg   (23148 lb)
