SATE S500

Fast, simple, smart suitable for every space

OVERVIEW

All the innovation the S700 brought, in a compact, smaller and lighter format for less demanding applications.

The S500 adds value to your production of luxury rigid boxes.

Make boxes

a good set to start!

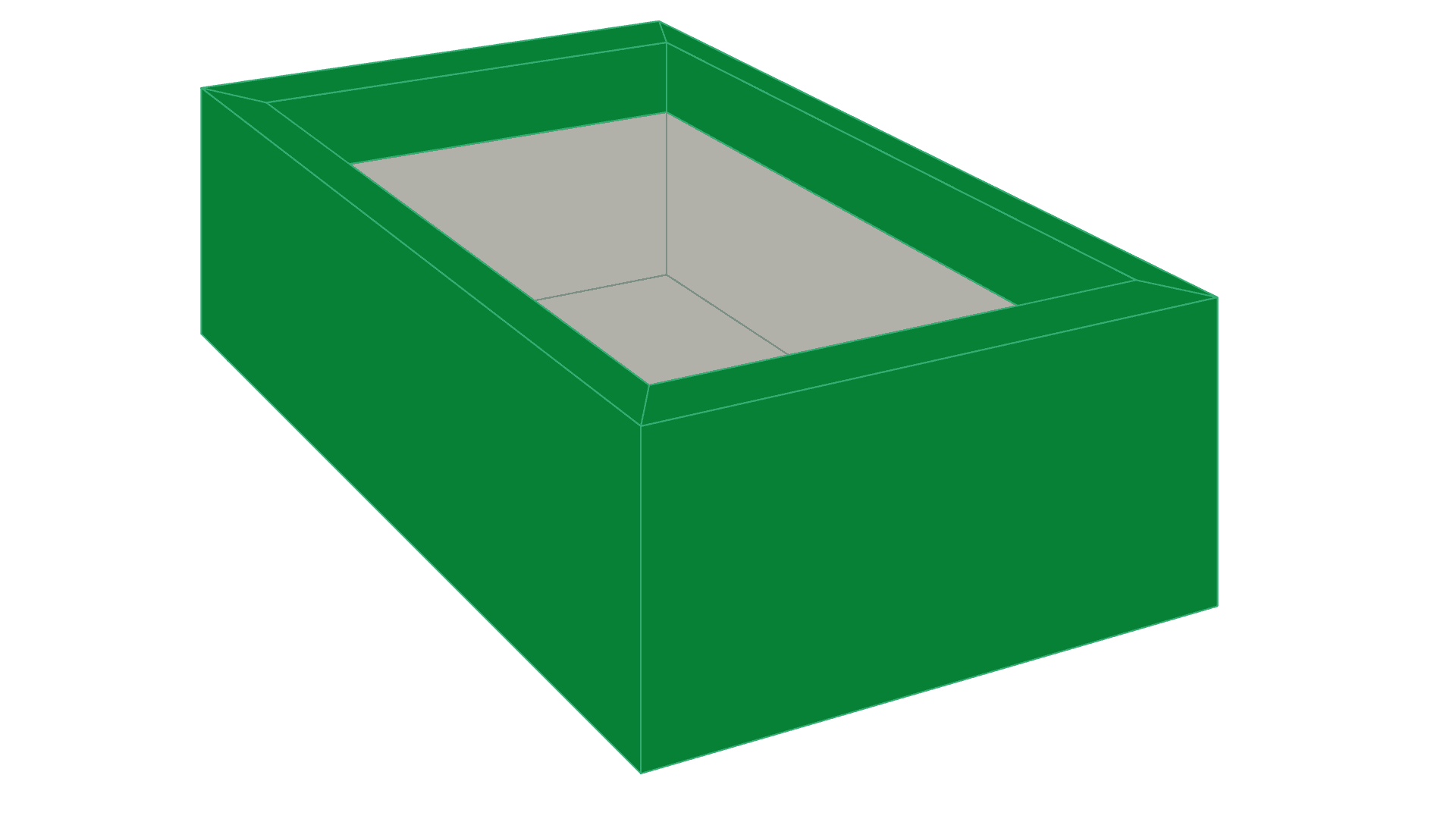

rigid box

X [normal]

Photo By: John Doe
Button
2 heights rigid box
4 heights rigid box
trapezoidal rigid box
clamshell rigid box

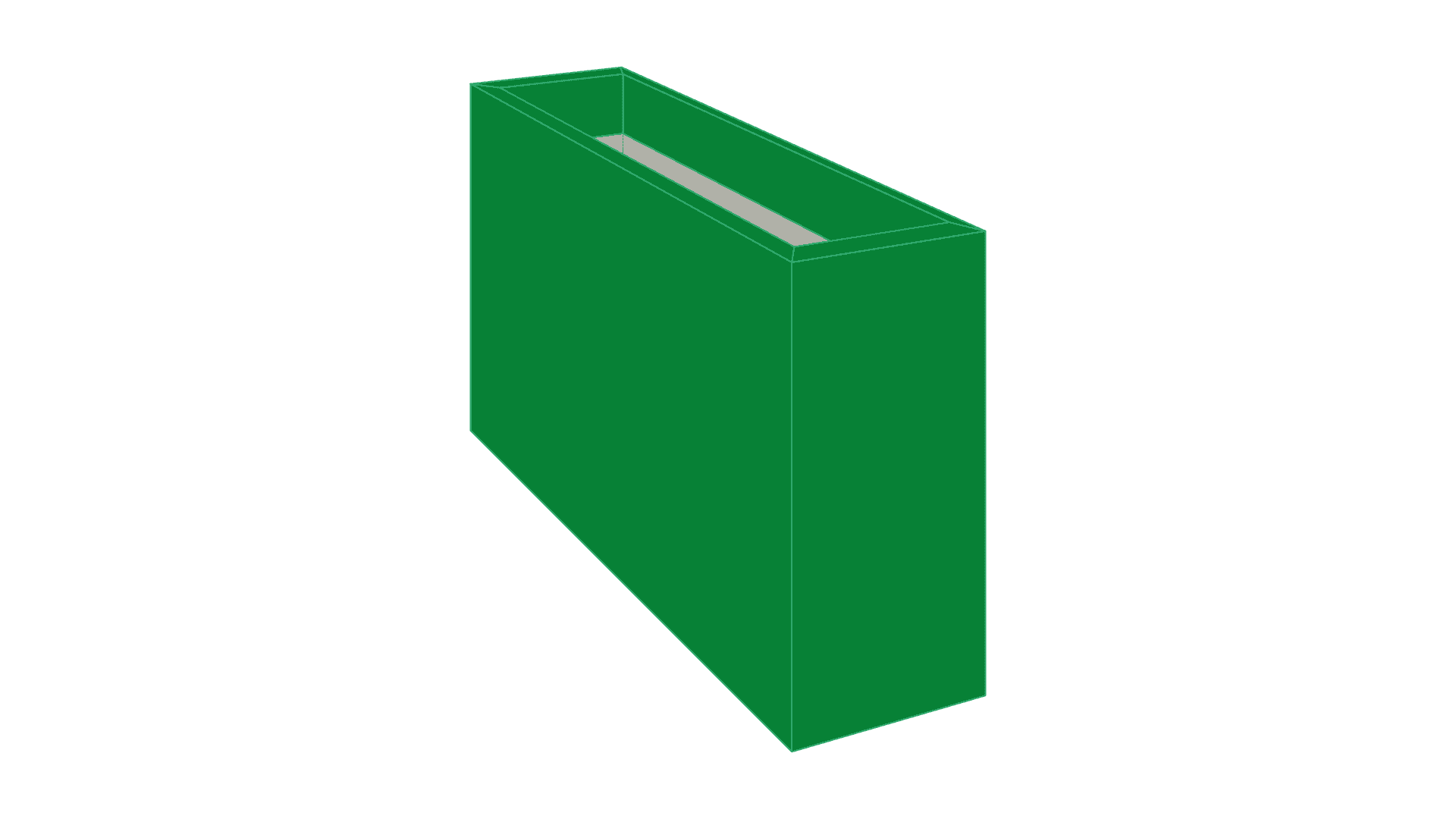

T rigid box
H rigid box

Specifications

If you'd like to see all the specification please visit us in desktop mode

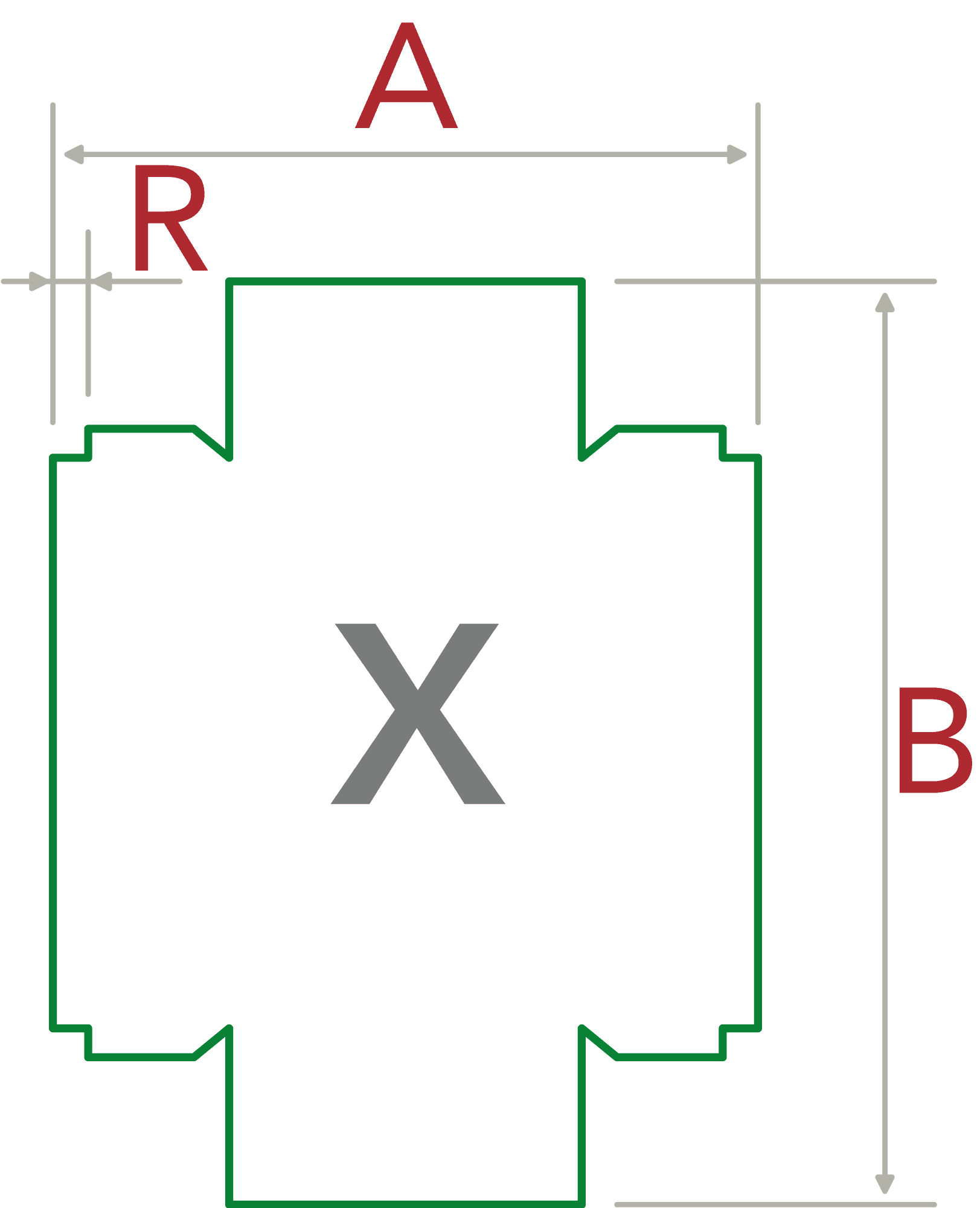

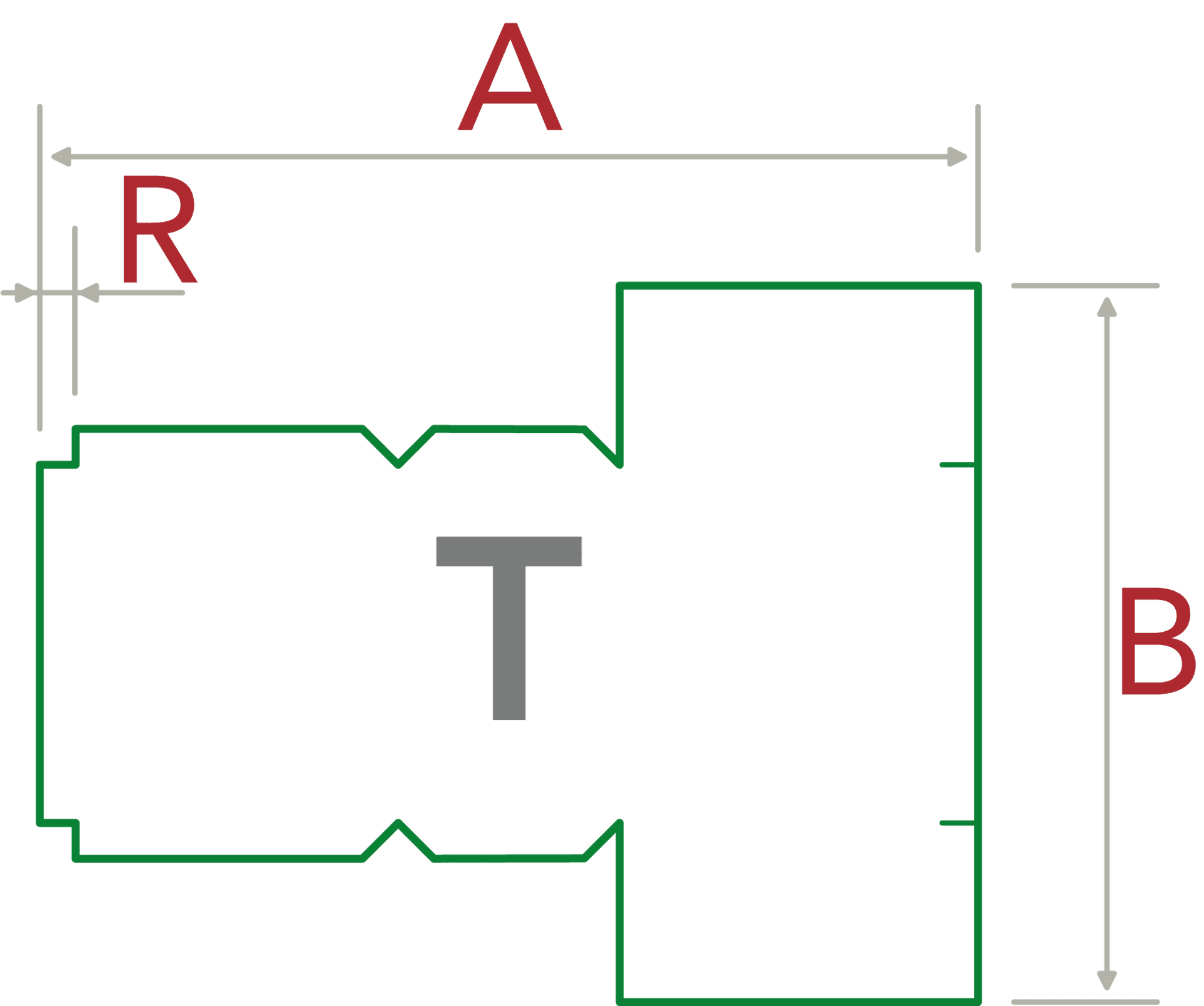

Paper sheets measures
Dimension
A
B
R
weight
pile height
min
70 mm   (2  3/4")
120 mm   (4  23/32")
5 mm   (0  13/64")
70 g/m²
-
max
520 mm (20 15/32")
870 mm (34 1/4")
100 mm   (3  15/16")
350 g/m²
800 mm   (31  1/2")

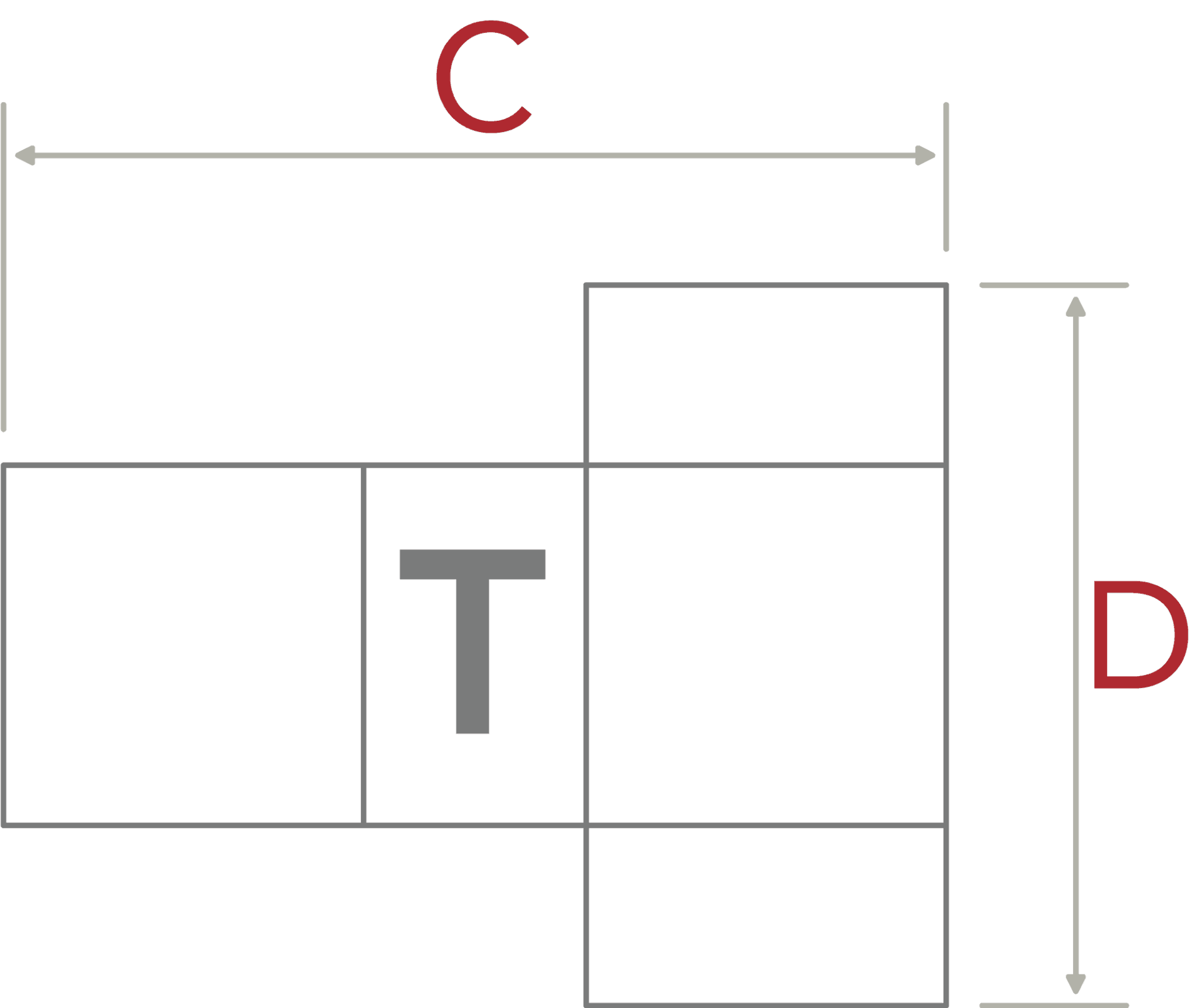

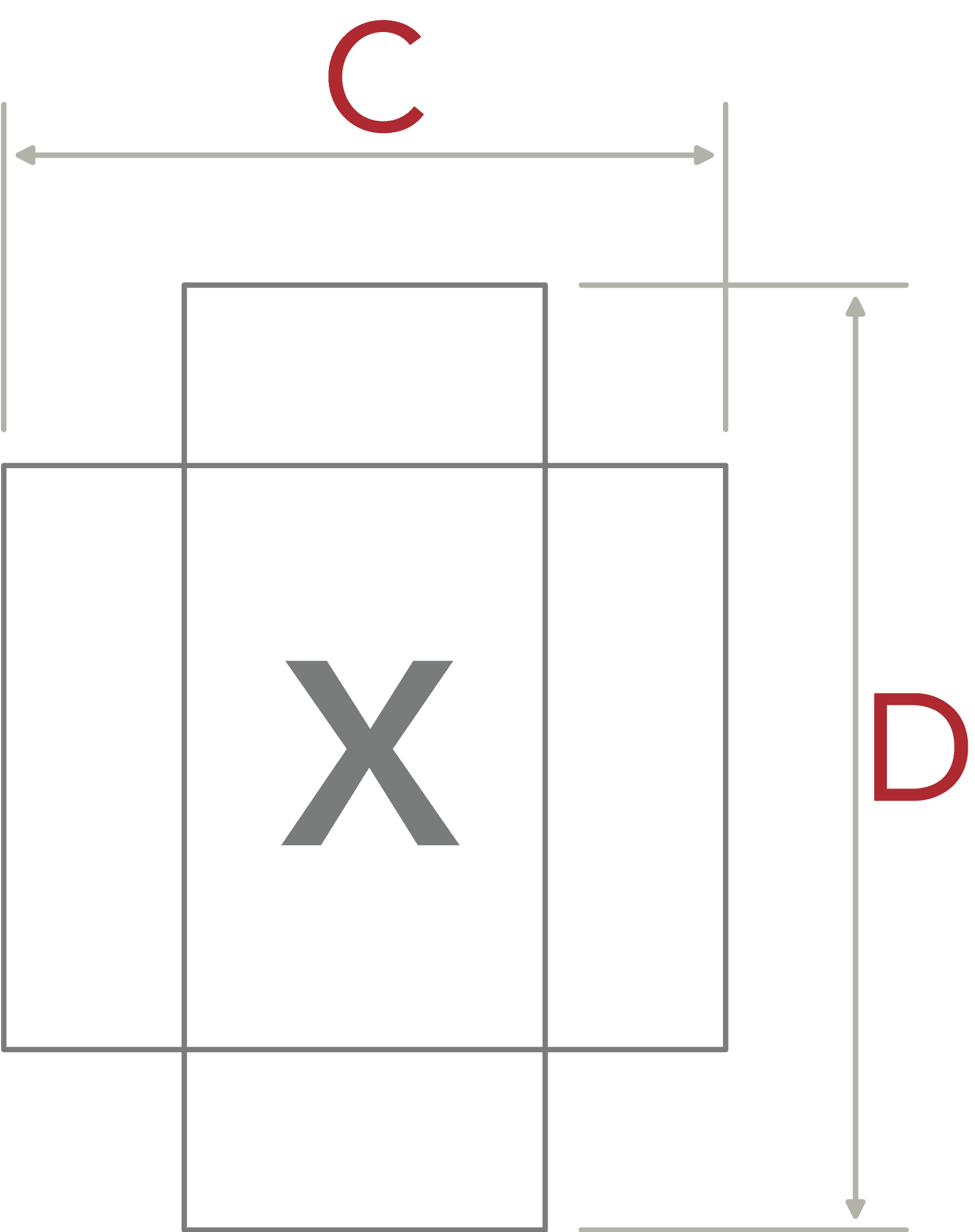

Cardboard sheets measures
Dimension
C
D
thickness
pile height
min
60 mm   (2 23/64")
60 mm   (2  23/64")
0,7 mm   (0  1/32")
-
max
510 mm (20 5/64")
800 mm (31 1/2")
6 mm   (0  15/64")
1500 mm   (59  1/16")
spotter accuracy
typ format change time
starting time
glue tank capacity
power absorption
air consumption
0,04 mm   (0,0016")
20 min with 1 operator
10 min
90 l   (23 U.S. gal - 19 U.K. gal)
12,5 kW (40kW installed)
175 l/min   (6,18 ft³/min)





length
width
height
net weight
7780mm (306 19/64")
4520 mm (177 61/64")
4800 mm   (188  31/32")
8500 kg (18739 lb)
